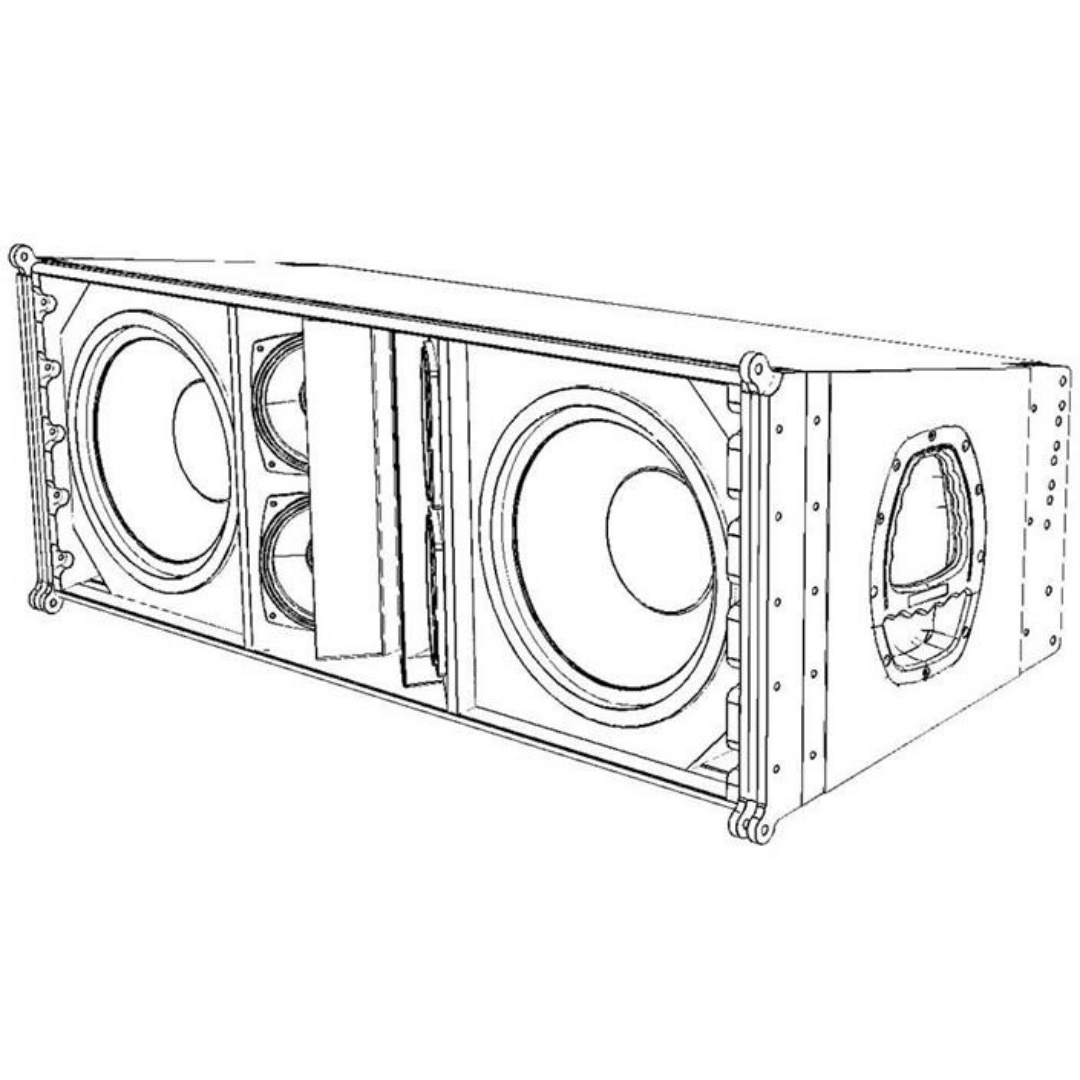

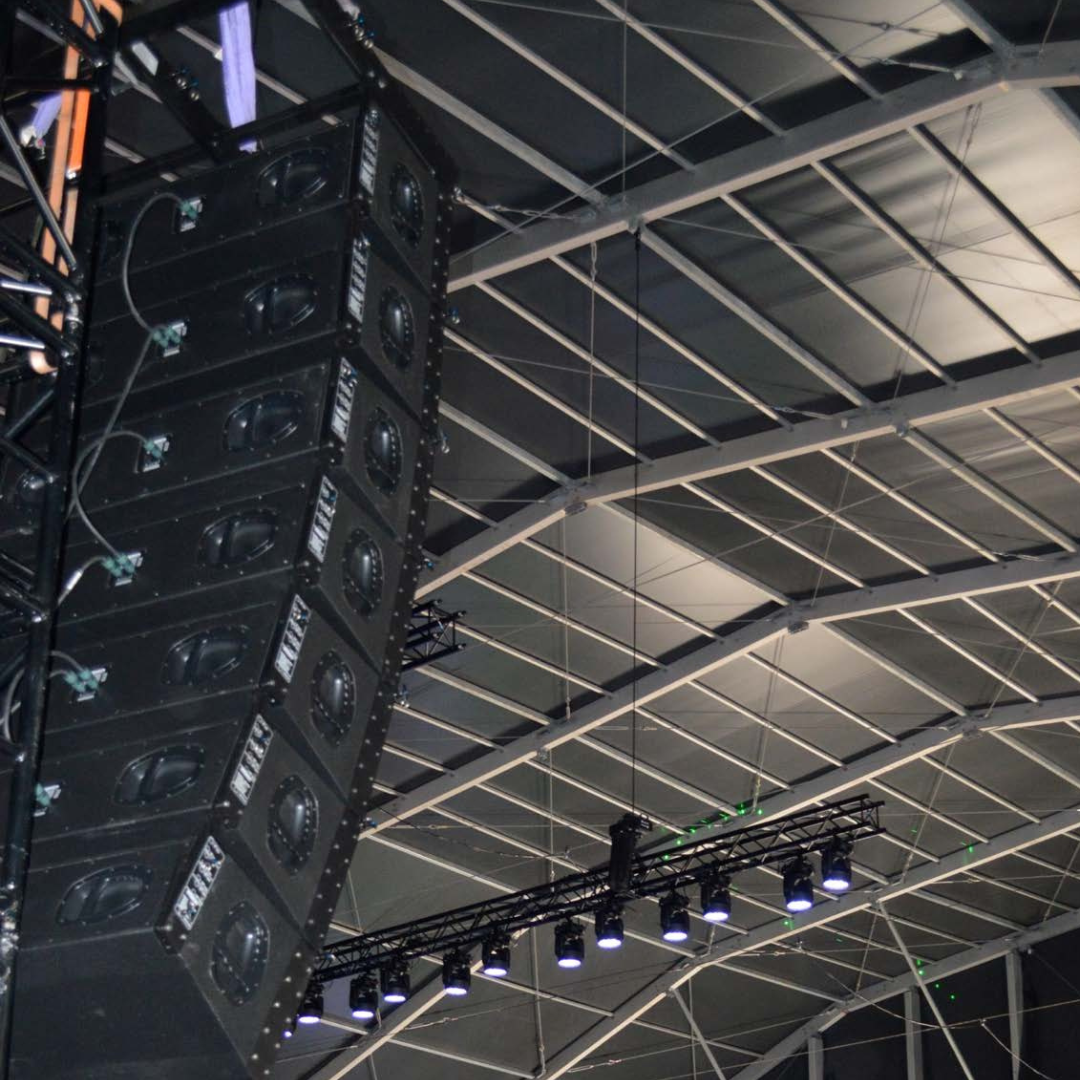

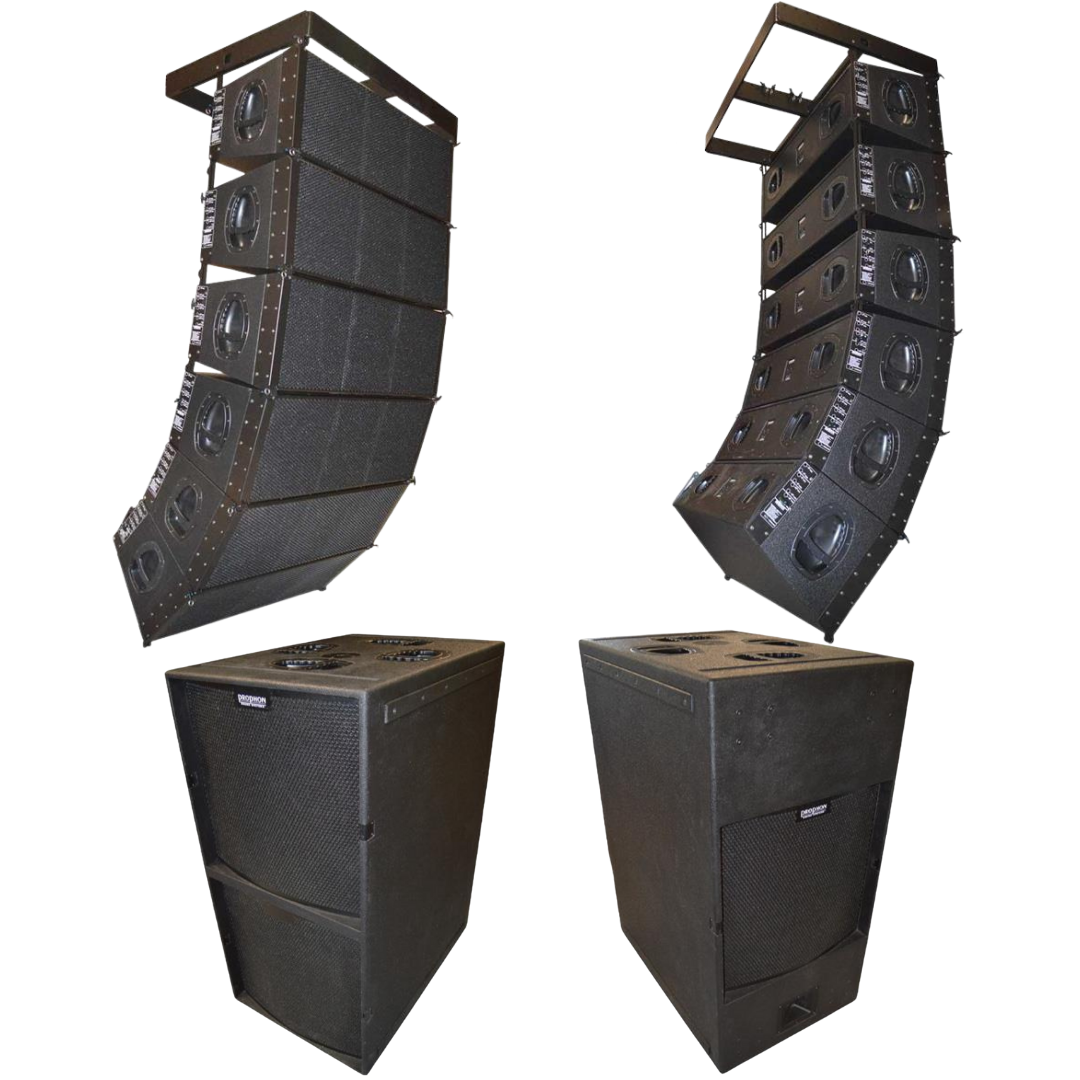

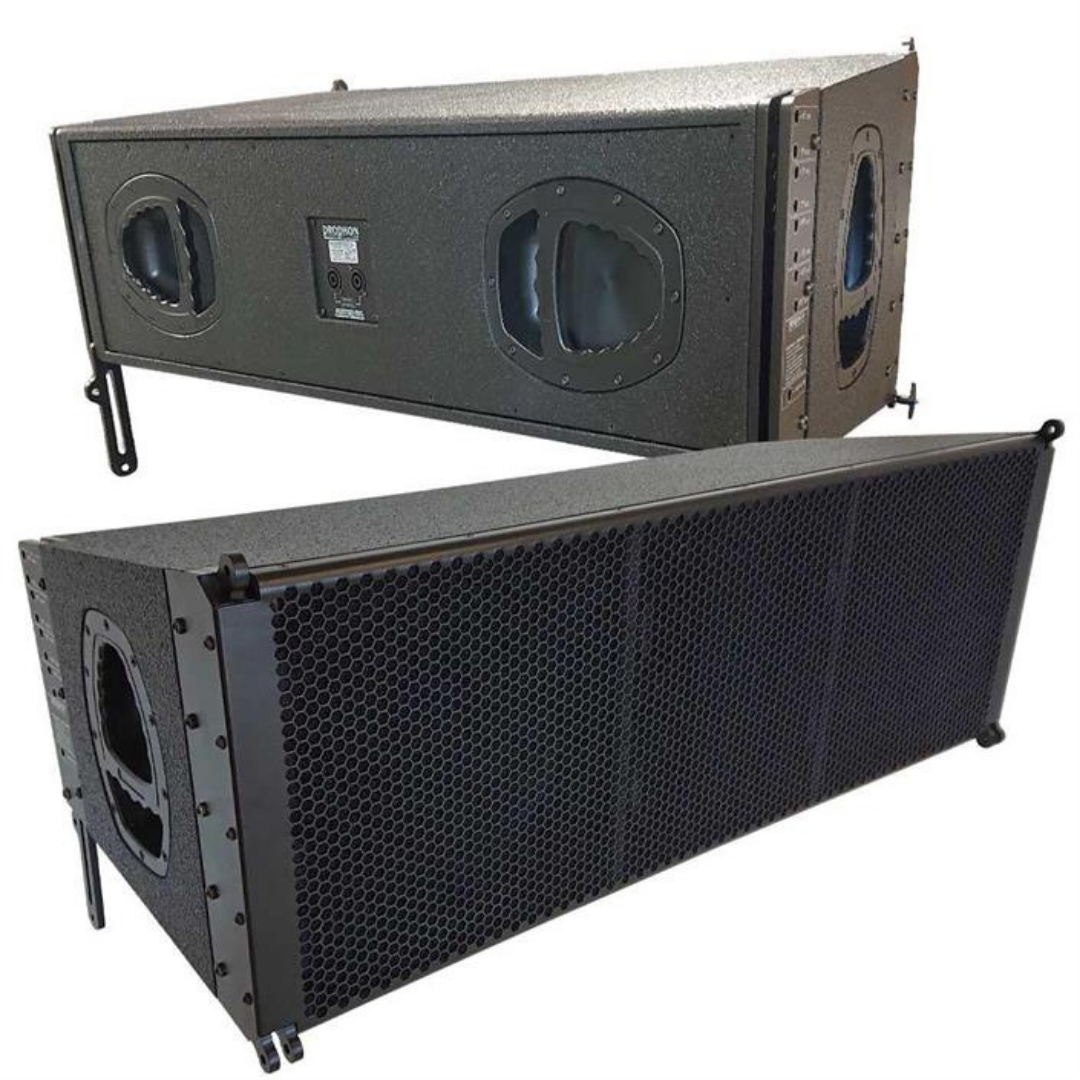

14 x PLA2124631 Line Array Top
- 110 x 15 degree dispersion

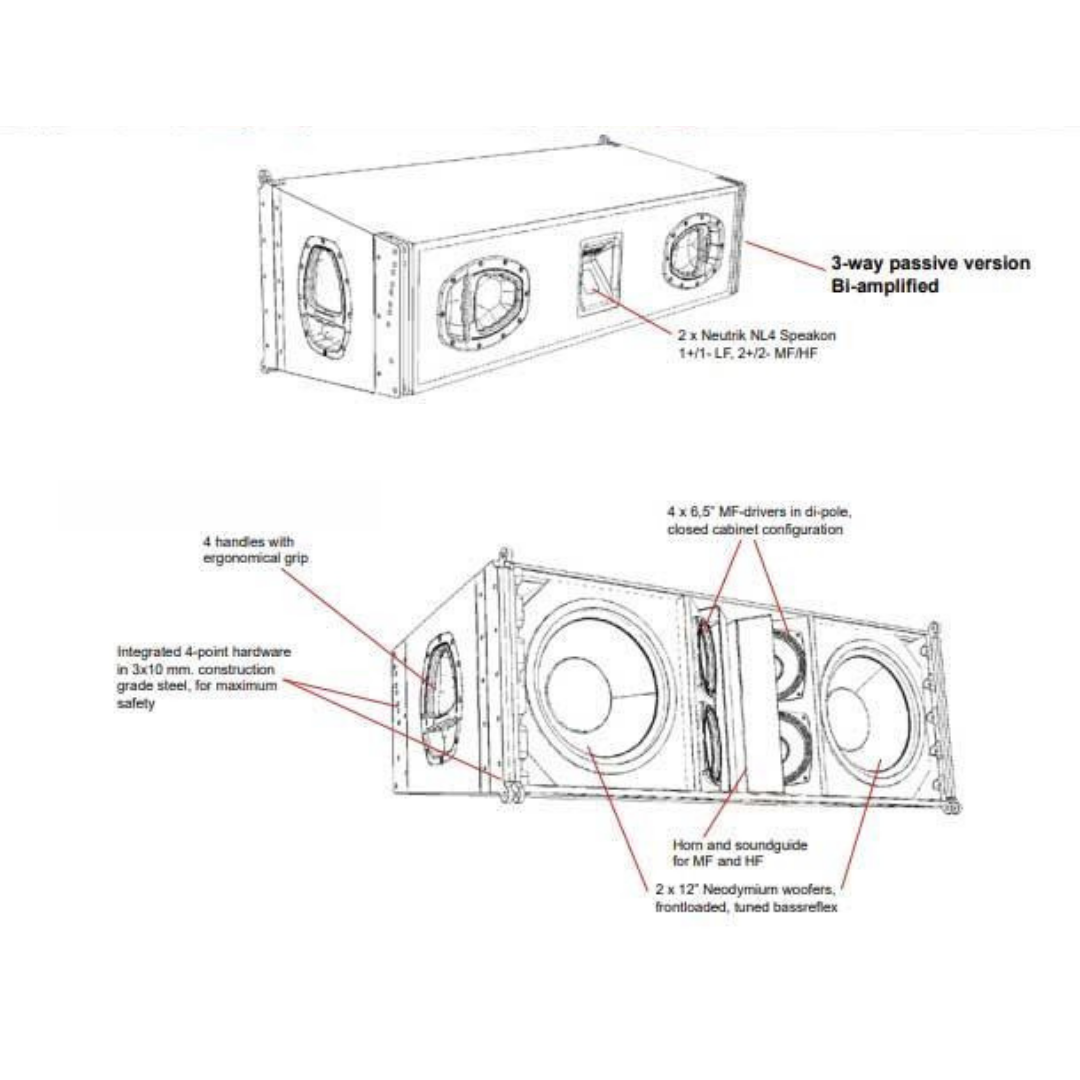

- 3-way passive
- Integrated hardware and flightware
- LF: 2 x 12″ neodymium woofer in frontloaded tuned bassreflex design
- MF: 4 x 6,5″ neodymium midrange woofers mounted in dipole configuration
- HF: 3 x 1″ neodymium drivers with 1,7″ voice coils mounted on waveguid and horn
- Four handles
- 4-point integrated rigging hardware
- Power handling 3-way 33500W
- Sensitivity: 106dB
- Max SPL: 145dB single speaker (calc. cont.) / 148dB (calc. peak)
- Weight: 66 kg passive 3-way version
- Dimensions: W110 x H400 x D400

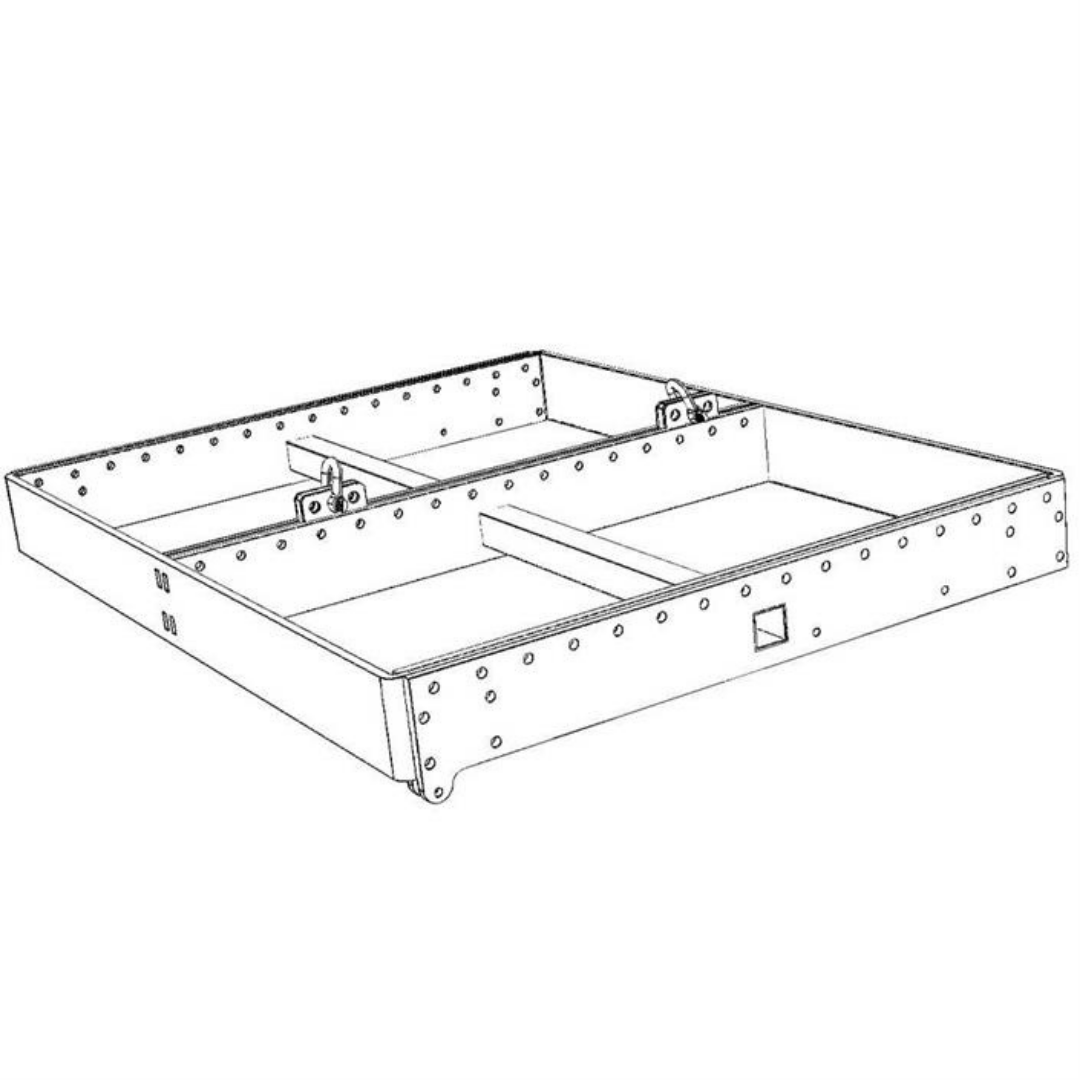

- Adjustable lifting points in bumper frame for balancing the load of the array
depending on til and number of speakers in the array,
Lifting points can be used at 1, 2, 3 or 4 points, either center lifting, or sidelifting.

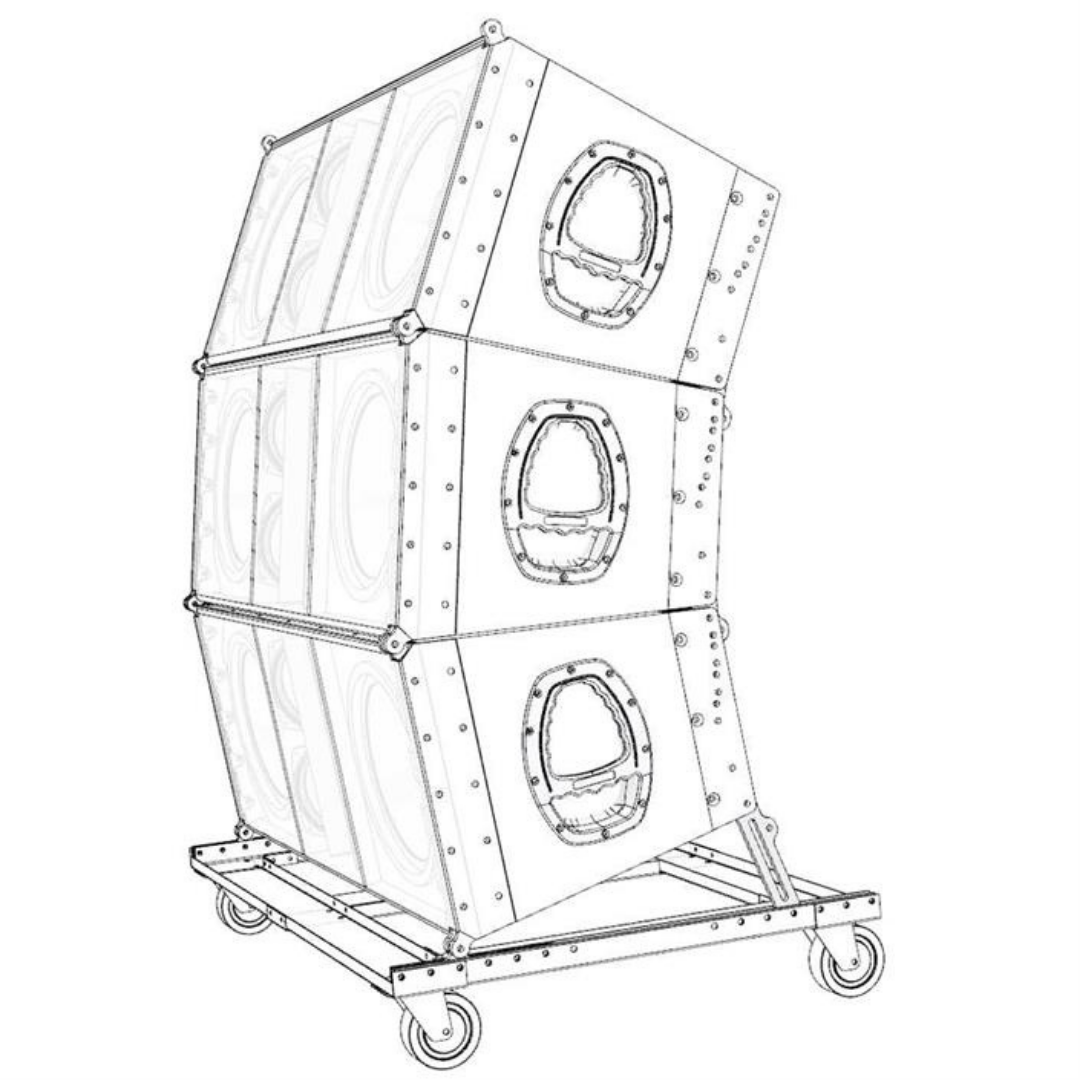

- Cart for transport 3 units/cart

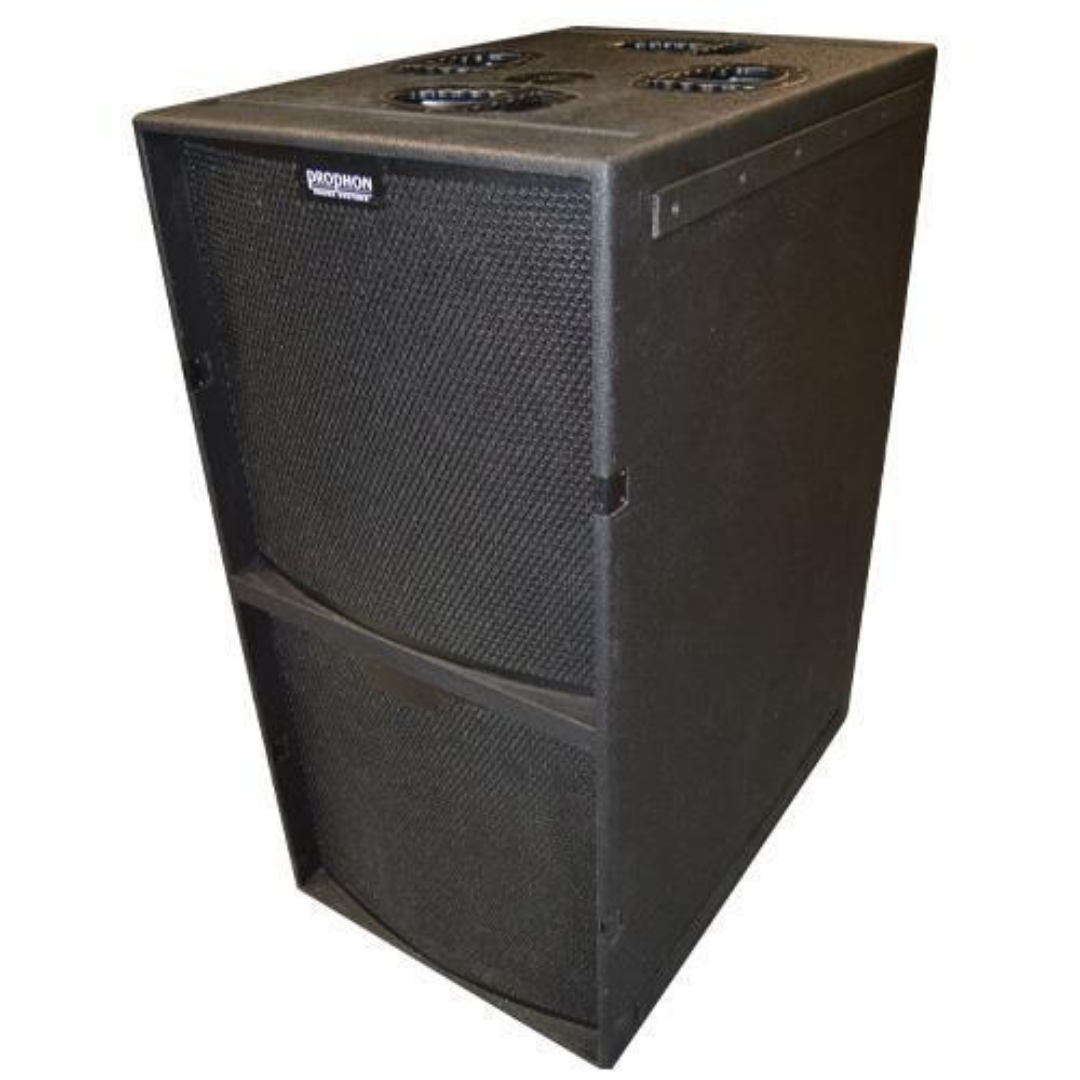

12 x B318HPC Subbas
- Model: B318HPC

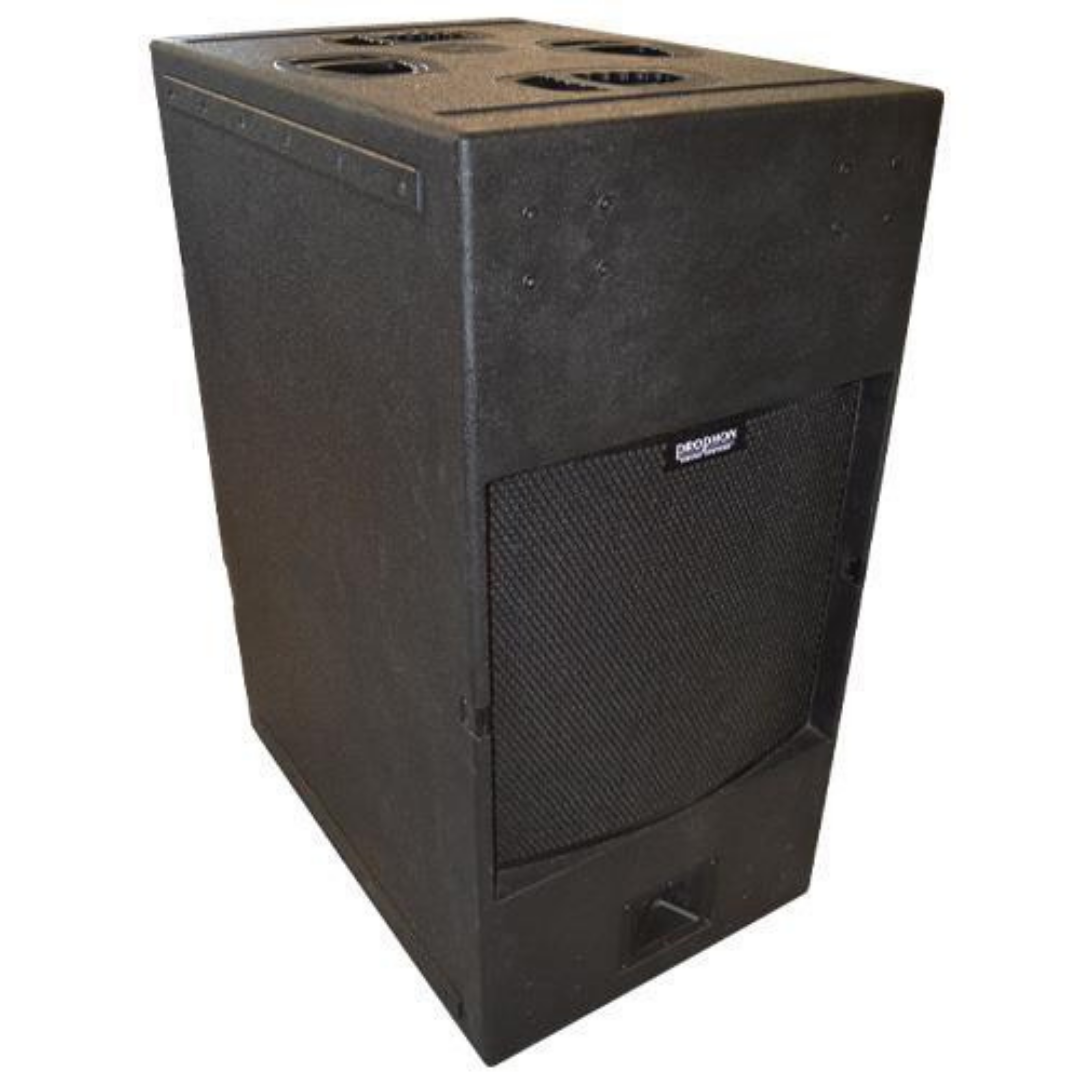

- Design: Cardioid high power subwoofers
- Components: Front: 2 x 18″, Back: 1 x 18″
- Power Handling cont.: 7200W
- Voice Coil: 4″ (100mm.)
- Peak to peak excursion: 60 mm
- Frequency responce: 30Hz – 100Hz
- Sensitivity on axis: 106dB
- Max SPL ( calc. peak): 147dB
- Nominal Impedance: Front 4 ohm, Back 8 ohm
- Dimensions: W60 x D88 x H120
- Weight: 120 kg

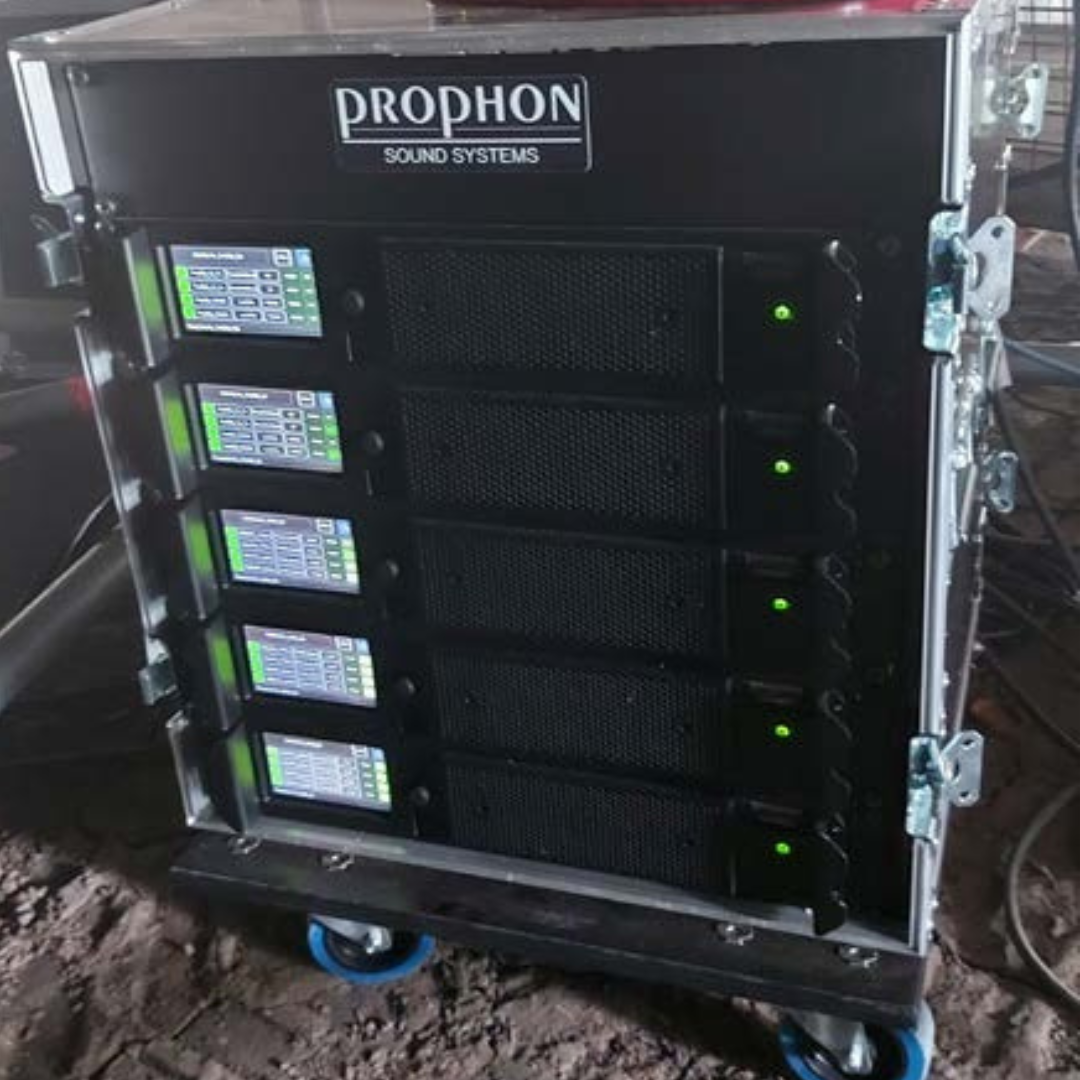

2 x Stegvagnar 5x V20000D
Systemförstärkare 4 kanaler
Class-D med SMPS, och powersharing,
PFC – Power Factor Correction
Wide mains 90-260VAC
4 x Neutrik Speakon NL4, 1 x Neutrik Speakon NL8
20000W total effekt, med powersharing
4 x 2500W@8ohm,
4 x 5000W@4/2,67/2 ohm
4 x 5000W@100V
4 x 3500W@70V
Bryggat 2 x 10000W @ 4/8 ohm,
Touchdisplay, DSP, FIR, nätverk,
SMAART integration
Skåpen behöver varsin 32A 3-fas för att drivas
